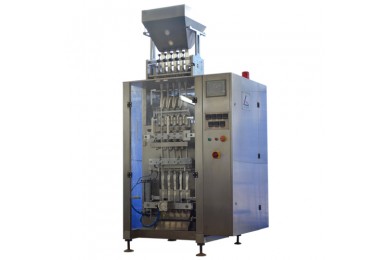

Its automation functions include automatic feeding, dosing, bagging, filling, sealing, data printing, products output and a series of automatic functions, etc. According to users` requirement, it possesses automatic aligned function. Feeding part of the machine uses translational feeding machine, accuracy measurement, and the use of stable, simple and easy to adjust.
Major Parameter
|
Packing material |
Aluminum/Plastic、Paper/ Plastic、Plastic / Plastic composite film |
|
Packing dose |
2—40ml |
|
Bag length |
80—200mm |
|
Bag width |
25—60mm |
|
Machine Dimensions |
1300×1700×2500 |
|
Core diameter |
φ70—φ76mm |
|
Total electric power (KW) |
9KW |
|
Power specifications |
380V 50Hz |
|
Compressed air strength |
0.6Mpa |
|
Compressed air consumption
|
5.5m3/h |
|
Weight |
1900kg |
|
Maximum width |
450mm |
|
Maximum outside diameter |
φ300mm |
|
Horizontal cutting frequency |
Up to 50 beats / min, depending on the shape of package |
